The Selection Pyramid – Five Priority Levels
| Level | Priority | Key Questions |
|---|
| 1. Environment | Protection | Temperature, humidity, chemicals, ingress? |
| 2. Function | Control type | On/off or modulating? What feedback needed? |
| 3. Integration | Communication | How does it talk to the control system? |
| 4. Safety | Fail-safe | What happens on power/air/signal loss? |
| 5. Maintenance | Accessibility | How easy to inspect, test, replace? |
Step 1 – Define the Operating Environment
| Condition | Required Feature |
|---|
| Outdoor / washdown | IP66 minimum; IP68 for immersion |
| Coastal / salt spray | 316L stainless or epoxy-coated aluminum |
| Chemical exposure | Corrosion-resistant alloys or PVDF |
| Dusty / abrasive | Dust-tight (IP6X); proximity switches |
| High temperature (>85°C) | Remote mounting; high-temp seals; Class H coils |
| Low temperature (<-20°C) | Heater/thermostat; low-temp seals |
| Hazardous area | ATEX/IECEx certification; intrinsic safety |
Step 2 – Determine Control Function
| Function | Required Accessories | Optional Upgrades |
|---|

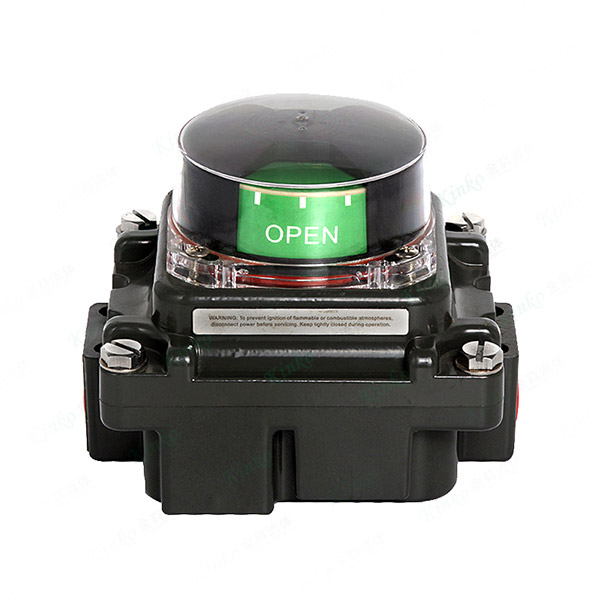

| On/Off (manual) | Limit switch box | Proximity switches; visual indicator |
| On/Off (solenoid) | Solenoid + limit switch box | Quick exhaust; flow controls |
| Modulating | Positioner (or I/P) + limit switches | Digital positioner with diagnostics |
| ESD / Safety | Solenoid + positive-opening limit switches | Partial stroke tester; SIL-rated; redundant |
| Networked | Positioner/solenoid with bus or HART | Diagnostic logging; remote config |
Positioner or I/P transducer?
| Condition | Recommendation |
|---|
| Tight control (±1% or better) | Positioner (closed-loop) |
| Slow response; budget-sensitive | I/P transducer (open-loop) |
| High friction or wear | Positioner |
| Split-range control | Positioner |
| SIL / safety application | Digital positioner with diagnostics |
Step 3 – Specify Feedback and Communication
Feedback options:
| Type | Device | Signal | Application |
|---|
| Discrete | Limit switch box | Digital (open/closed) | On/off; interlocks |
| Continuous | Position transmitter | 4–20 mA | Modulating; trending |
| Combined | Positioner with feedback | Analog + digital | Control + status |
| Diagnostic | Smart positioner | HART / bus | Predictive maintenance |
Protocol selection:
| Protocol | Best For |
|---|
| HART | Existing 4–20 mA installations |
| Modbus RTU | Simple digital networks; cost-effective |
| Profibus PA/DP | Process automation (DCS) |
| Foundation Fieldbus | Advanced diagnostics; large plants |
| IO-Link | Sensors; simple devices |
Step 4 – Address Safety and Failure Modes
| Failure Scenario | Required Feature |
|---|
| Loss of power | Spring-return actuator; manual override |
| Loss of air | Lock-up valve (fail-last); spring-return |
| Loss of signal | Positioner with fail-freeze / fail-last |
| Loss of feedback | Redundant switches; separate transmitter |
SIL requirements:
| SIL Level | Required Features |
|---|
| SIL 1 | Single device; documented reliability |
| SIL 2 | Redundant feedback; positive-opening; proof testing |
| SIL 3 | Dual-channel; 1oo2 voting; full diagnostics; certified |
Redundancy strategies:
| Configuration | Reliability Gain |
|---|
| Dual limit switches | Eliminates single switch failure |
| 1oo2 solenoids | Prevents nuisance trips |
| Positioner + separate transmitter | Cross-validation |
| Dual power supply | Prevents single power loss |
Step 5 – Plan for Maintenance and Diagnostics
| Feature | Benefit |
|---|
| Transparent cover | Visual inspection without opening |
| Quick-disconnect cables | Faster replacement |
| Diagnostic logging | Trend deviation; plan before failure |

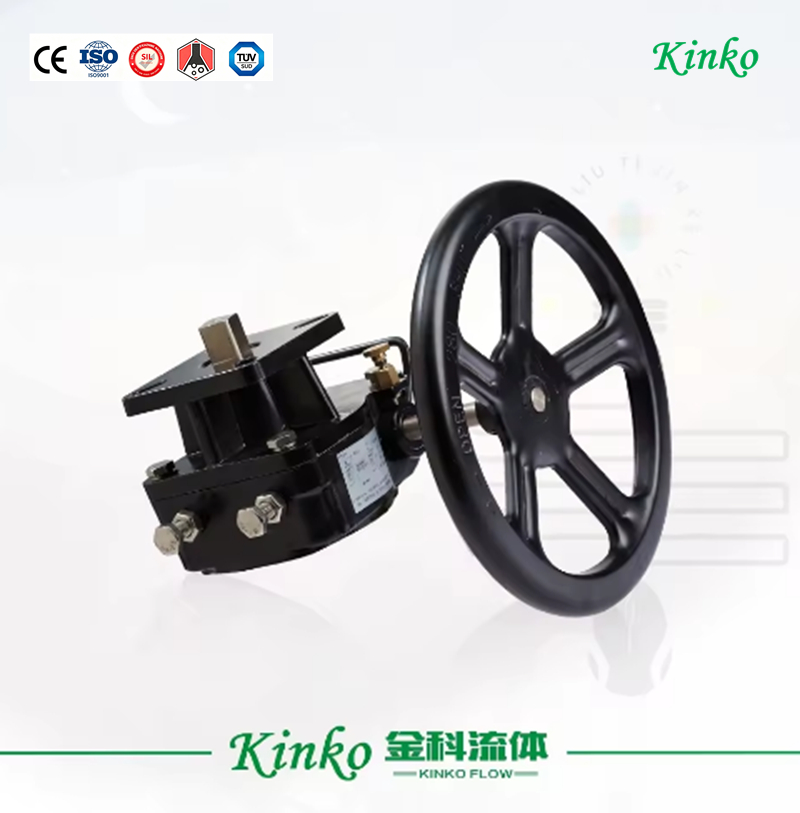

| Manual override | Operation during power/control loss |
| Auto-drain filter | Reduces daily maintenance |
Diagnostic capability levels:
| Level | Capability | Examples |
|---|
| Basic | No diagnostics | Mechanical switches; analog I/P |
| Intermediate | LED status; local indication | Proximity switches with LED |
| Advanced | Digital communication; trending | Smart positioners |
| Predictive | Full history; algorithms | Smart + asset management software |
Quick Selection Table – Accessories by Application
| Application | Limit Box | Positioner | Solenoid | Extra |
|---|
| Water/wastewater | IP66 mechanical | Optional (modulating) | Encapsulated | Flow controls |
| Offshore/marine | 316L SS; dual | Digital (HART) | Epoxy-molded; SS | Heater/thermostat |
| Chemical processing | Corrosion-resistant | Digital with diagnostics | Class H; SS | Volume booster |
| Oil/gas onshore | IP66 mech or proximity | Digital (SIL) | Surge-suppressed | Lock-up valve |
| Mining/slurry | Proximity (no moving) | Optional | Encapsulated | Quick exhaust |
| Food/pharma | Stainless/hygienic | Digital (no lube) | Sterile-rated | Dedicated F-R |
| Power generation | High-temp mechanical | Digital (remote) | Class H; manual | Heat shield |
| LNG/cryogenic | Extended neck; 316L | Remote mount | Low-temp seals | Heat extension |
Procurement Checklist – Questions to Ask
| Category | Question |
|---|
| Environment | What is the IP rating with depth/duration? Material certifications? |
| Function | Suitable for on/off or modulating? Accuracy? |
| Electrical | Voltage, current, power? Contact rating? |
| Communication | Protocols supported? HART/bus upgradable? |
| Safety | Positive-opening contacts? SIL certification? |
| Lifecycle | Expected service life? Spare parts availability? |
| Documentation | Drawings, wiring diagrams, test reports? |
| Mounting | Standards supported (NAMUR, VDI/VDE, ISO)? |
Common Mistakes – And How to Avoid
| Mistake | Correct Approach |
|---|
| IP65 for outdoor | Select IP68 for outdoor/washdown |
| Silver contacts on PLC inputs | Specify gold-plated for low-energy circuits |
| Lubricator before regulator | Always F→R→L sequence |
| Undersized ports | Match or exceed actuator port size |
| Single switch on critical valve | Specify dual/redundant for safety |
| No heater in humid climate | Always specify heater/thermostat for outdoor |
| Ignoring diagnostics | Specify smart devices for critical loops |
