Introduction: Downtime Costs Money

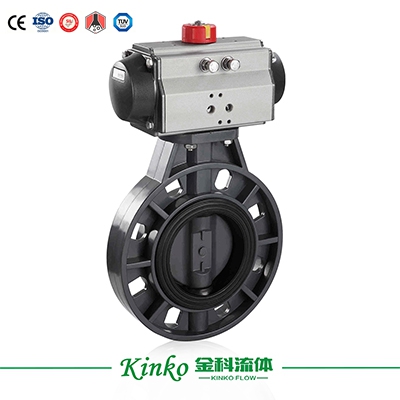

A stuck or leaking butterfly valve stops production. Most failures can be repaired on-site in under an hour. This guide covers systematic diagnosis and repair for wafer and lug butterfly valves with pneumatic (Kinko AT/AW) or electric actuators.
Part 1: Safety First
Before any repair:
Isolate and depressurize the line completely.
Lock out the actuator power source:
Pneumatic (Kinko AT/AW): Shut off compressed air, bleed residual pressure.
Electric: Lock out circuit breaker.
Verify zero pressure downstream.
Wear PPE (gloves, safety glasses, face shield if chemical media).
Part 2: Quick Diagnosis
| Symptom | Most Likely Cause | Fix Time |
|---|---|---|
| Will not turn at all | Debris wedged, actuator failure, stem corrosion | 30-60 min |
| Turns but stiff | Seat swelling, under-sized actuator | 15-30 min |
| Leaks through closed valve | Worn seat, debris on seat | 30-60 min |
| Leaks from stem | Worn O-rings or packing | 15-30 min |
Part 3: Fixing a Stuck Valve
Step 1: Isolate the Problem
Disconnect the actuator from the valve.
Actuator cycles freely → Valve is stuck.
Actuator also will not cycle → Actuator is faulty.
Step 2: Actuator Troubleshooting

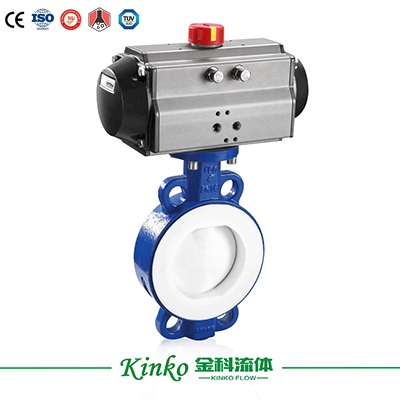

Kinko AT or AW pneumatic actuator will not stroke:
| Check | Fix |
|---|---|
| Air pressure (needs 4-8 bar / 60-120 PSI) | Increase supply pressure |
| Solenoid valve operation | Replace coil or clean valve |
| Blocked air lines | Clear debris or ice |
| Internal seal failure (air leaks from housing) | Replace seal kit (AT series field-serviceable; AW series factory service) |
Kinko electric actuator will not turn:
| Check | Fix |
|---|---|
| Power supply voltage | Correct 24V DC, 110V AC, or 220V AC |
| Thermal overload tripped | Allow 30 min cool down |
| Manual override works but motor does not | Replace motor or gears |
Step 3: Valve Body Stuck (Actuator Removed)
Attempt to turn the stem with a wrench.
Won't turn at all: Debris wedged (back-flush line) or seat swelling (replace seat with compatible material).
Turns but very stiff: Seat compression set (cycle valve several times) or stem corrosion (disassemble, clean, lubricate).
Step 4: Manual Breaking Method
Apply penetrating lubricant around disc edge.
Wait 15 minutes.
Apply steady force with a wrench. Do not hammer.
Once free, cycle fully open and closed several times.
Part 4: Fixing a Leaking Valve
Seat Leak (Leaks Through Closed Disc)
| Cause | Fix |
|---|---|
| Debris on seat | Open/close valve 5-10 times to purge |
| Worn or torn seat | Replace seat (Kinko seat kit required) |
| Disc edge damage | Replace disc or entire valve |
| Actuator over-torqued (crushed seat) | Replace seat; re-set limit switches |
Quick seat replacement steps (Kinko wafer valve):
Remove valve from line.
Remove stem retaining pin.
Push out stem and remove disc.
Pry out old seat, install new seat.
Reinstall disc, stem, and retaining pin.
Reinstall valve between flanges.
Stem Leak (Leaks from Top or Bottom)
Fix:
Remove actuator.
Remove stem retaining clip.
Replace O-rings or packing using Kinko stem seal kit.
Reassemble.
Part 5: Repair vs. Replace
| Condition | Action |
|---|---|
| Worn seat or stem seals | Repair (kit is low cost) |
| Stuck once due to debris | Repair (cycle to clear) |
| Corroded or pitted disc edge | Replace valve |
| Cracked body | Replace valve |
| Valve under 4” (DN100) | Often cheaper to replace |
| Valve 6” and larger | Repair (cost-effective) |
Kinko recommendation: Stock seat kits for valves 2”-8”. For valves 10” and larger, keep a spare valve to minimize downtime.
Part 6: Preventive Maintenance
| Interval | Action |
|---|---|
| Monthly | Cycle static valves fully open/closed |
| Quarterly | Inspect stem for leaks; check actuator bolts |
| Annually | Replace seat and stem seals on critical service valves |
For Kinko AT/AW pneumatic actuators:
Weekly: Drain air filters.
Annually (AT series): Replace piston seals after 100,000 cycles.
Annually (AW series): Inspect scotch yoke bushing.
Part 7: Kinko Replacement Parts Reference
| Component | Kinko Part Format |
|---|---|
| Seat – EPDM | V-SEAL-EPDM-[size] |
| Seat – PTFE | V-SEAL-PTFE-[size] |
| Stem seal kit | V-STEMKIT-[size] |
| AT series actuator seal kit | ACT-AT-SEALKIT-[model] |
| AW series actuator | Factory service only |
To order genuine Kinko replacement parts, provide valve size, model number, and seat material.
